Ruby for DevOps: Auditing Windows RDP Hardening from the Registry (NLA, TLS, Timeouts, Firewall Scope)

#!/usr/bin/env ruby
# frozen_string_literal: true
#
# win_rdp_hardening_audit.rb -- audit Remote Desktop (RDP) hardening on a
# Windows host using only Ruby's bundled win32/registry library.
#
# Exposed RDP is the #1 initial-access vector for ransomware crews, and the
# settings that matter are scattered across three registry hives. This script
# reads each one, scores it against a baseline (CIS / Microsoft security
# baseline defaults), and prints a pass/fail table plus a JSON blob you can
# ship to your SIEM.
#
# Checks:
#   * RDP enabled at all?                  (fDenyTSConnections)
#   * Network Level Authentication on?     (UserAuthentication)
#   * TLS required for the RDP transport?  (SecurityLayer)
#   * Encryption level High/FIPS?          (MinEncryptionLevel)
#   * Listening port changed from 3389?    (PortNumber -- informational)
#   * Idle/disconnect session timeouts?    (MaxIdleTime / MaxDisconnectionTime)
#   * Clipboard / drive redirection off?   (fDisableClip / fDisableCdm)
#   * Windows Firewall RDP rule scope      (via Windows Firewall registry)
#   * Restrict local admin RDP via policy? (fPromptForPassword)
#
# Usage (on Windows, elevated prompt recommended):
#   ruby win_rdp_hardening_audit.rb            # table
#   ruby win_rdp_hardening_audit.rb --json     # JSON
#   ruby win_rdp_hardening_audit.rb --fixture rdp_fixture.json   # test anywhere
#
# Exit codes: 0 = all pass, 1 = warnings only, 2 = at least one FAIL.
require 'json'
require 'optparse'
# ----------------------------------------------------------------------------
# Registry access layer.
#
# RegistryReader talks to the real registry through win32/registry (bundled
# with the RubyInstaller builds). FixtureReader loads a JSON file of the same
# shape so the audit logic can be tested on Linux/macOS or in CI. The audit
# only ever calls #read(hive, key, value) so the two are interchangeable.
# ----------------------------------------------------------------------------
class RegistryReader
  def initialize
    require 'win32/registry'
    @hives = {
      'HKLM' => Win32::Registry::HKEY_LOCAL_MACHINE,
      'HKCU' => Win32::Registry::HKEY_CURRENT_USER
    }
  end
  # Returns the value, or nil if the key/value does not exist.
  def read(hive, key, value)
    # KEY_READ | KEY_WOW64_64KEY so a 32-bit Ruby still sees the 64-bit view.
    access = Win32::Registry::KEY_READ | 0x0100
    @hives.fetch(hive).open(key, access) { |reg| reg[value] }
  rescue Win32::Registry::Error
    nil
  end
end
class FixtureReader
  def initialize(path)
    @data = JSON.parse(File.read(path))
  end
  def read(hive, key, value)
    @data.dig(hive, key, value)
  end
end
# ----------------------------------------------------------------------------
# The checks. Each is a hash describing where the value lives, what "good"
# looks like, and how to explain a failure to a human.
# ----------------------------------------------------------------------------
TS = 'SYSTEM\CurrentControlSet\Control\Terminal Server'
RDP_TCP = "#{TS}\\WinStations\\RDP-Tcp"
POLICY = 'SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services'
FW_RULES = 'SYSTEM\CurrentControlSet\Services\SharedAccess\Parameters\FirewallPolicy\FirewallRules'
# A value can be set by Group Policy (POLICY hive) which overrides the local
# WinStations setting. We check policy first, then fall back to the local key.
def policy_or_local(reg, value)
  v = reg.read('HKLM', POLICY, value)
  v.nil? ? reg.read('HKLM', RDP_TCP, value) : v
end
CHECKS = [
  {
    id: 'rdp_enabled',
    title: 'Remote Desktop enabled',
    severity: :info,
    fetch: ->(r) { r.read('HKLM', TS, 'fDenyTSConnections') },
    pass: ->(v) { v == 1 },
    explain: ->(v) { v == 1 ? 'RDP disabled (fDenyTSConnections=1)' : 'RDP is ENABLED; remaining checks matter' }
  },
  {
    id: 'nla_required',
    title: 'Network Level Authentication required',
    severity: :fail,
    fetch: ->(r) { policy_or_local(r, 'UserAuthentication') },
    pass: ->(v) { v == 1 },
    explain: ->(v) { "UserAuthentication=#{v.inspect}; without NLA attackers reach the login screen pre-auth (BlueKeep class bugs)" }
  },
  {
    id: 'security_layer_tls',
    title: 'Security layer set to TLS',
    severity: :fail,
    fetch: ->(r) { policy_or_local(r, 'SecurityLayer') },
    pass: ->(v) { v == 2 },
    explain: ->(v) { "SecurityLayer=#{v.inspect}; 0=RDP-native, 1=negotiate, 2=TLS/SSL. Require TLS" }
  },
  {
    id: 'encryption_high',
    title: 'Encryption level High or FIPS',
    severity: :fail,
    fetch: ->(r) { policy_or_local(r, 'MinEncryptionLevel') },
    pass: ->(v) { [3, 4].include?(v) },
    explain: ->(v) { "MinEncryptionLevel=#{v.inspect}; 1=Low 2=Client-compatible 3=High 4=FIPS" }
  },
  {
    id: 'idle_timeout',
    title: 'Idle session timeout configured',
    severity: :warn,
    fetch: ->(r) { policy_or_local(r, 'MaxIdleTime') },
    pass: ->(v) { v.is_a?(Integer) && v.positive? && v <= 15 * 60 * 1000 },
    explain: ->(v) { "MaxIdleTime=#{v.inspect} ms; set <= 900000 (15 min) so abandoned sessions cannot be hijacked" }
  },
  {
    id: 'disconnect_timeout',
    title: 'Disconnected session timeout configured',
    severity: :warn,
    fetch: ->(r) { policy_or_local(r, 'MaxDisconnectionTime') },
    pass: ->(v) { v.is_a?(Integer) && v.positive? },
    explain: ->(v) { "MaxDisconnectionTime=#{v.inspect}; disconnected sessions linger forever and hold licences/memory" }
  },
  {
    id: 'clipboard_redirect',
    title: 'Clipboard redirection disabled',
    severity: :warn,
    fetch: ->(r) { policy_or_local(r, 'fDisableClip') },
    pass: ->(v) { v == 1 },
    explain: ->(v) { "fDisableClip=#{v.inspect}; clipboard is a common exfil path for jump hosts" }
  },
  {
    id: 'drive_redirect',
    title: 'Drive redirection disabled',
    severity: :warn,
    fetch: ->(r) { policy_or_local(r, 'fDisableCdm') },
    pass: ->(v) { v == 1 },
    explain: ->(v) { "fDisableCdm=#{v.inspect}; mapped client drives let malware hop across the session" }
  },
  {
    id: 'prompt_for_password',
    title: 'Always prompt for password on connect',
    severity: :warn,
    fetch: ->(r) { policy_or_local(r, 'fPromptForPassword') },
    pass: ->(v) { v == 1 },
    explain: ->(v) { "fPromptForPassword=#{v.inspect}; prevents saved-credential auto-logon from stolen .rdp files" }
  },
  {
    id: 'port_nonstandard',
    title: 'Listening port (informational)',
    severity: :info,
    fetch: ->(r) { r.read('HKLM', RDP_TCP, 'PortNumber') },
    pass: ->(v) { v != 3389 },
    explain: ->(v) { "PortNumber=#{v.inspect}; 3389 is scanned constantly. Changing it is obscurity, not security, but cuts log noise" }
  }
].freeze
# Firewall rule check is different in shape: we scan every rule string under
# FirewallRules for the built-in RDP rules and look at its RA4= (remote
# address) scope. "RA4=*"/absent means the whole internet may connect.
def firewall_scope(reg)
  rules = reg.read('HKLM', FW_RULES, '__ALL__') # FixtureReader convenience
  if rules.nil? && defined?(Win32::Registry)
    rules = {}
    Win32::Registry::HKEY_LOCAL_MACHINE.open(FW_RULES, Win32::Registry::KEY_READ | 0x0100) do |k|
      k.each_value { |name, _type, data| rules[name] = data }
    end
  end
  return nil if rules.nil?
  rdp = rules.select { |name, data| name =~ /RemoteDesktop/i && data.include?('Active=TRUE') && data.include?('Dir=In') }
  rdp.map do |name, data|
    scope = data[/RA4=([^|]+)/, 1] || '*'
    # A rule can list Profile= several times (Domain|Private|Public); no
    # Profile= token at all means it applies to every profile.
    profiles = data.scan(/Profile=([^|]+)/).flatten
    profiles = ['Any'] if profiles.empty?
    { rule: name, profiles: profiles, remote_scope: scope }
  end
end
# ----------------------------------------------------------------------------
# Runner
# ----------------------------------------------------------------------------
class RdpAudit
  def initialize(reader)
    @reader = reader
  end
  def run
    results = CHECKS.map do |c|
      value = c[:fetch].call(@reader)
      ok = c[:pass].call(value)
      status = ok ? 'PASS' : (c[:severity] == :info ? 'INFO' : c[:severity].to_s.upcase)
      { id: c[:id], title: c[:title], value: value, status: status, detail: ok ? nil : c[:explain].call(value) }
    end
    fw = firewall_scope(@reader)
    unless fw.nil?
      open_rules = fw.select { |r| r[:remote_scope] == '*' && r[:profiles].any? { |p| p =~ /Public|Any/i } }
      results << {
        id: 'firewall_scope', title: 'Firewall RDP rule limited to trusted subnets',
        value: fw, status: open_rules.empty? ? 'PASS' : 'FAIL',
        detail: open_rules.empty? ? nil : "#{open_rules.size} inbound RDP rule(s) allow any remote address on Public/Any profile"
      }
    end
    # If RDP is off entirely, everything else is moot: downgrade to INFO.
    if results.first[:value] == 1
      results.each { |r| r[:status] = 'INFO' if r[:status] != 'PASS' }
    end
    results
  end
end
def overall(results)
  return 2 if results.any? { |r| r[:status] == 'FAIL' }
  return 1 if results.any? { |r| r[:status] == 'WARN' }
  0
end
def print_table(results, host)
  puts "RDP hardening audit  host=#{host}"
  puts '=' * 78
  results.each do |r|
    mark = { 'PASS' => '[ OK ]', 'WARN' => '[WARN]', 'FAIL' => '[FAIL]', 'INFO' => '[INFO]' }[r[:status]]
    puts format('%s %-46s %s', mark, r[:title], r[:value].is_a?(Array) ? "#{r[:value].size} rule(s)" : r[:value].inspect)
    puts "       -> #{r[:detail]}" if r[:detail]
  end
  puts '=' * 78
  counts = results.group_by { |r| r[:status] }.transform_values(&:size)
  puts "summary: #{counts.map { |k, v| "#{k}=#{v}" }.join('  ')}"
end
if __FILE__ == $PROGRAM_NAME
  opts = { json: false, fixture: nil }
  OptionParser.new do |o|
    o.banner = 'Usage: win_rdp_hardening_audit.rb [--json] [--fixture FILE.json]'
    o.on('--json', 'JSON output') { opts[:json] = true }
    o.on('--fixture FILE', 'Read registry values from a JSON fixture (testing)') { |f| opts[:fixture] = f }
  end.parse!
  reader = opts[:fixture] ? FixtureReader.new(opts[:fixture]) : RegistryReader.new
  host = ENV['COMPUTERNAME'] || (`hostname`.strip rescue 'unknown')
  results = RdpAudit.new(reader).run
  if opts[:json]
    puts JSON.pretty_generate(host: host, generated: Time.now.utc, exit_code: overall(results), checks: results)
  else
    print_table(results, host)
  end
  exit overall(results)
end

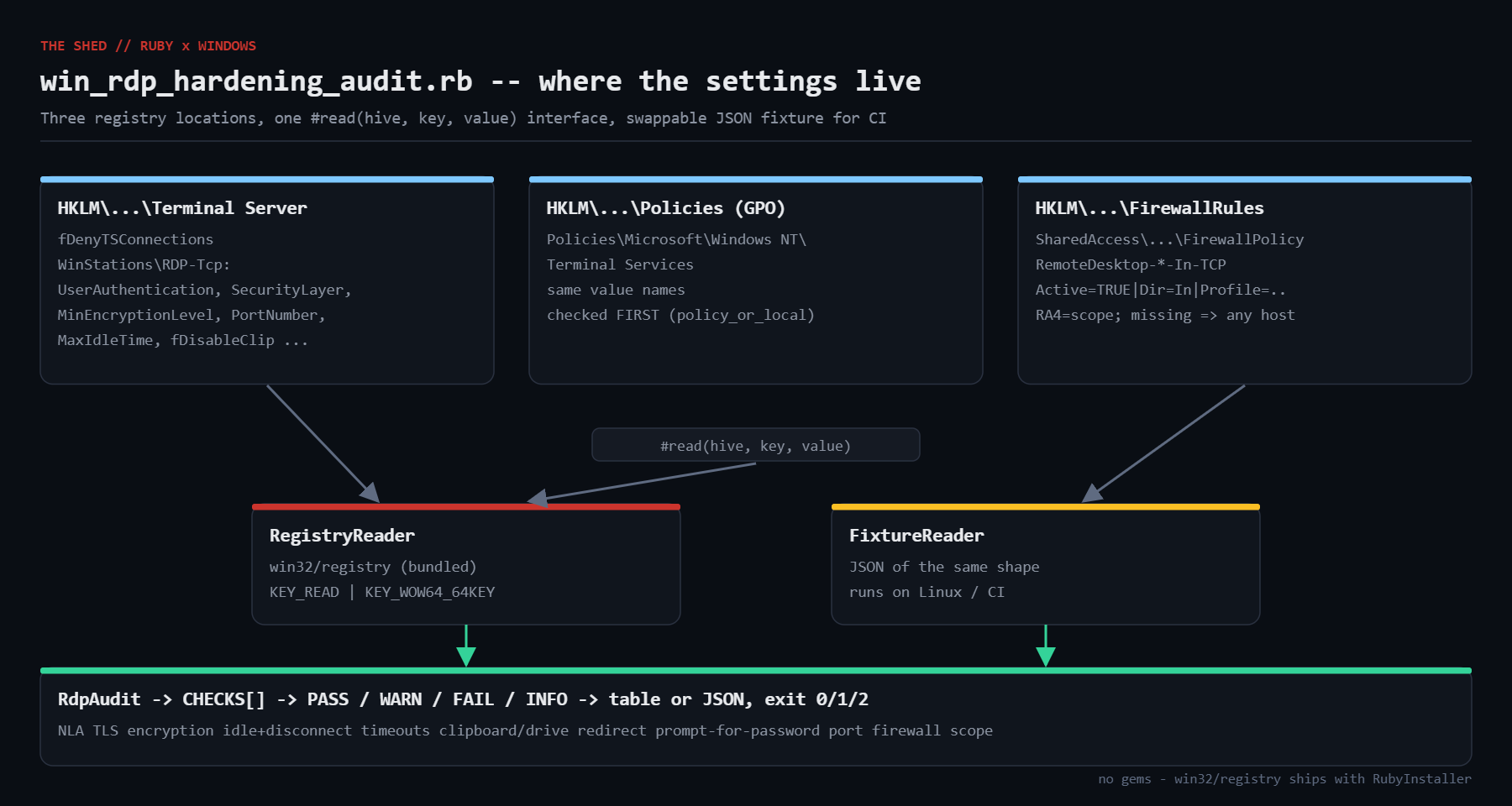

Two readers, one interface. RegistryReader uses Win32::Registry and opens keys with KEY_READ | KEY_WOW64_64KEY so a 32-bit Ruby still sees the 64-bit hive. FixtureReader loads JSON of the same hive/key/value shape. The audit only calls #read, so it cannot tell them apart — which is exactly how the output tab was generated on Linux.

GPO precedence. Windows applies HKLM\SOFTWARE\Policies\Microsoft\Windows NT\Terminal Services over the local RDP-Tcp key. policy_or_local checks the policy hive first and falls back only when the value is absent, so the audit reports the setting that is actually in effect.

Firewall rules are strings. Each rule under FirewallPolicy\FirewallRules is a pipe-delimited string like Action=Allow|Active=TRUE|Dir=In|Profile=Public|RA4=10.0.0.0/8. The audit selects active inbound RemoteDesktop* rules and flags any that have no RA4= scope on a Public or Any profile.

$ ruby win_rdp_hardening_audit.rb --fixture fixture_default_windows.json
RDP hardening audit  host=claude
==============================================================================
[INFO] Remote Desktop enabled                         0
       -> RDP is ENABLED; remaining checks matter
[FAIL] Network Level Authentication required          0
       -> UserAuthentication=0; without NLA attackers reach the login screen pre-auth (BlueKeep class bugs)
[FAIL] Security layer set to TLS                      1
       -> SecurityLayer=1; 0=RDP-native, 1=negotiate, 2=TLS/SSL. Require TLS
[FAIL] Encryption level High or FIPS                  2
       -> MinEncryptionLevel=2; 1=Low 2=Client-compatible 3=High 4=FIPS
[WARN] Idle session timeout configured                0
       -> MaxIdleTime=0 ms; set <= 900000 (15 min) so abandoned sessions cannot be hijacked
[WARN] Disconnected session timeout configured        nil
       -> MaxDisconnectionTime=nil; disconnected sessions linger forever and hold licences/memory
[WARN] Clipboard redirection disabled                 0
       -> fDisableClip=0; clipboard is a common exfil path for jump hosts
[WARN] Drive redirection disabled                     0
       -> fDisableCdm=0; mapped client drives let malware hop across the session
[WARN] Always prompt for password on connect          0
       -> fPromptForPassword=0; prevents saved-credential auto-logon from stolen .rdp files
[INFO] Listening port (informational)                 3389
       -> PortNumber=3389; 3389 is scanned constantly. Changing it is obscurity, not security, but cuts log noise
[FAIL] Firewall RDP rule limited to trusted subnets   1 rule(s)
       -> 1 inbound RDP rule(s) allow any remote address on Public/Any profile
==============================================================================
summary: INFO=2  FAIL=4  WARN=5
exit=2
$ ruby win_rdp_hardening_audit.rb --fixture fixture_hardened.json
RDP hardening audit  host=claude
==============================================================================
[INFO] Remote Desktop enabled                         0
       -> RDP is ENABLED; remaining checks matter
[ OK ] Network Level Authentication required          1
[ OK ] Security layer set to TLS                      2
[ OK ] Encryption level High or FIPS                  4
[ OK ] Idle session timeout configured                900000
[ OK ] Disconnected session timeout configured        3600000
[ OK ] Clipboard redirection disabled                 1
[ OK ] Drive redirection disabled                     1
[ OK ] Always prompt for password on connect          1
[INFO] Listening port (informational)                 3389
       -> PortNumber=3389; 3389 is scanned constantly. Changing it is obscurity, not security, but cuts log noise
[ OK ] Firewall RDP rule limited to trusted subnets   1 rule(s)
==============================================================================
summary: INFO=2  PASS=9
exit=0
